Kona Honzo DL - Mountain Steals
Gloss Azure Blue

Kona
Honzo DL

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 9ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
No Reviews
OR
Select a Size
Please select a size
Select a Color
Please select a color

	???BOPIS_STORE_INFO???

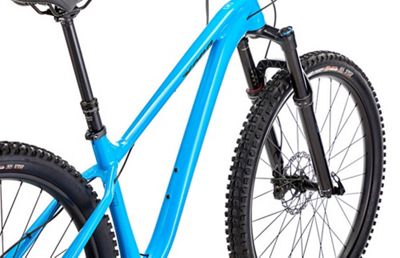

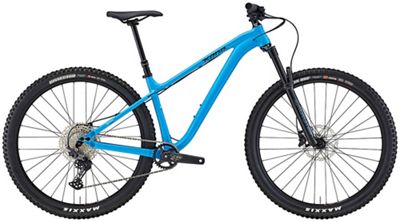

The Kona Honzo DL is a trail bike for taking on whatever challenges you put in front of it. The bike includes a 12-speed drivetrain, but has dropouts if you want to run it as a single speed instead. The seat tube is short if you want to run a longer dropper post and get your seat out of your way. The Maxxis EXO tires have insane grip as you ride and the Shimano Centerlock brakes stop on a dime. Better keep an eye on your shoes, because this bike is chewing up and spitting out whatever it sees.

Products on Sale are Discontinued Styles or Colors.

Product Description
Item No.   10453355


FEATURES of the Kona Honzo DL

  • Fork: RockShox Revelation RC DebonAir 140mm Tapered 110mm Spacing
  • Crankarms: SRAM NX-Eagle
  • Chainrings: 32t X-Sync Eagle
  • B/B: SRAM DUB PF92
  • Chain: SRAM SX-Eagle
  • Freewheel: SRAM NX-Eagle 11-50t 12spd
  • R/D: SRAM SX-Eagle
  • Shifters: SRAM SX-Eagle
  • Brake Calipers: Shimano MT410 Hydraulic
  • Front Brake Rotor: Shimano RT54 180mm (centerlock)
  • Rear Brake Rotor: Shimano RT54 160mm (centerlock)
  • Brake Levers: Shimano MT410 Hydraulic
  • Headset: FSA No.57B
  • Handlebar: Kona XC/BC 35
  • Stem: Kona XC/BC 35
  • Seatpost: TranzX Dropper +RAD Internal 31.6mm
  • Seat Clamp: Kona Clamp
  • Grips: Kona Key Grip
  • Saddle: WTB Volt
  • Front Hub: Shimano 110x15mm (centerlock)
  • Rear Hub: Shimano 148x12mm (centerlock)
  • Spokes: Stainless Black 14g
  • Rims: WTB ST i30 TCS
  • Front Tire: Maxxis Minion DHF EXO TR 3C 29x2.5" WT
  • Rear Tire: Maxxis Dissector EXO TR 3C 29x2.4" WT
  • Paint Color: Gloss Metallic Black with Magenta, Yellow and Supernova Fade Decals

Product Specifications
Brake Type: Hydraulic Disc Brake
Features: Shimano Components
Drivetrain Speed: 12 Speeds
Frame Material: Aluminum
Wheel Size: 29 in.
Disclaimer: We only ship this brand to US Addresses., This is an oversize item and can only ship via ground shipping., Bike specifications and components are subject to change without notice.
Best Use: Trail Biking
Product Reviews
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 2ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getContent, 3ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Size Guide

Kona Honzo DL

Size Small Medium Large X-Large
ST Length 14.9" 14.9" 16.5" 17.7"
TT Length 22.9" 24.0" 25.0" 26.3"
Reach 16.9" 17.9" 18.9" 20.1"
Stack 24.8" 25.2" 25.6" 25.9"
Standover 28.2" 27.4" 27.2" 28.2"
HT Angle 65.5" 65.5" 65.5" 65.5"
HT Length 3.5" 3.9" 4.3" 4.7"
ST Angle 76.5" 76.5" 76.5" 76.5"
CS Length 16.3" 16.3" 16.3" 16.3"
BB Drop 2.5" 2.5" 2.5" 2.5"
BB Height 12.3" 12.3" 12.3" 12.3"
Wheelbase 45.5" 46.7" 47.8" 49.1"
Front Center 29.1" 30.2" 31.3" 32.7"
Fork Length 21.7" 21.7" 21.7" 21.7"
Fork Offset 1.7" 1.7" 1.7" 1.7"
